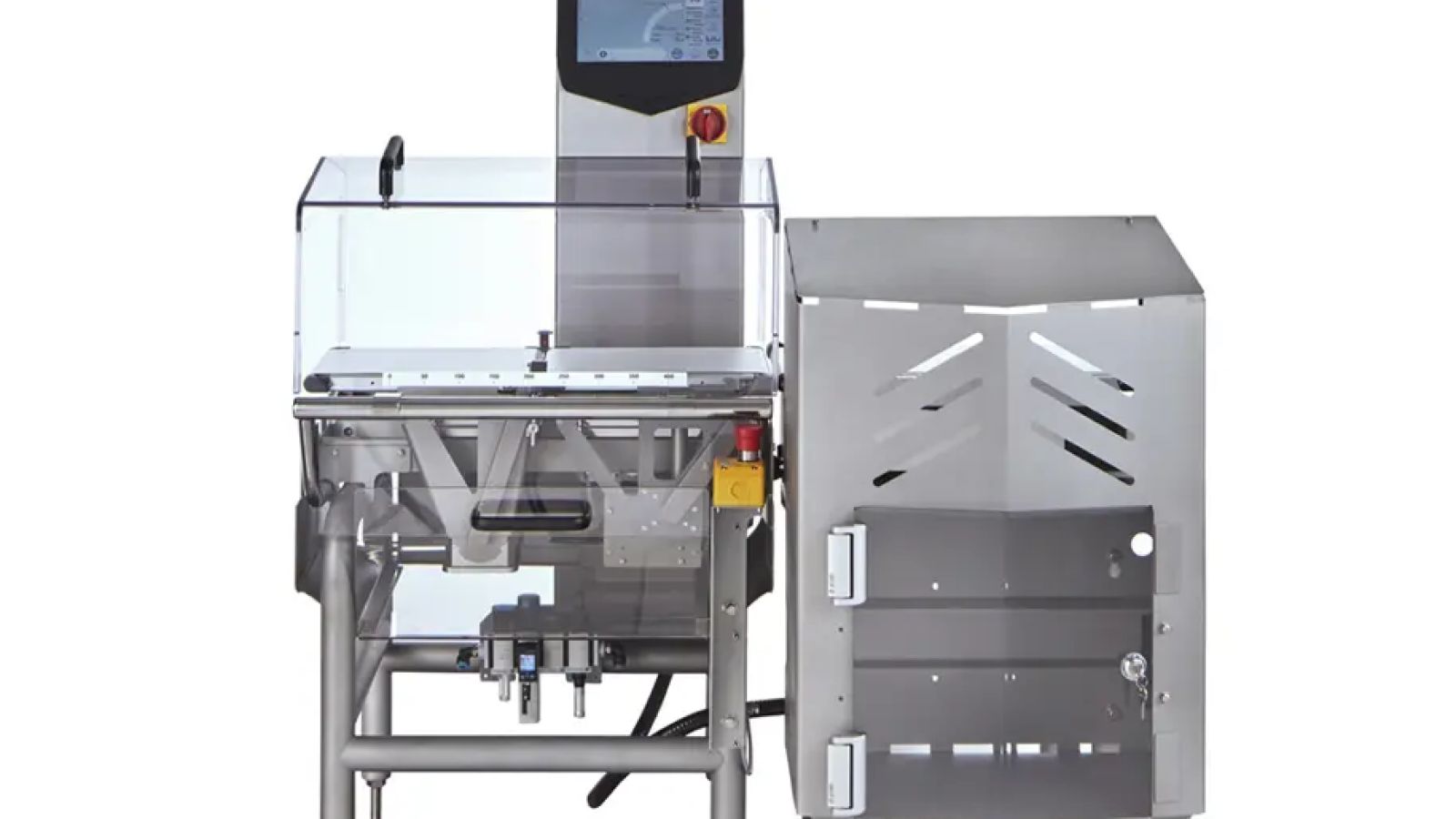

Ishida DACS-GN Checkweigher

Checkweigher, up to 480 ppm, ±0.1g.

By Global Machinery Hub Editorial Team · Published July 30, 2026 · Updated November 16, 2026 · 1 min read

Specifications

Series DACS-GN-S (Excellence) and DACS-GN-F (Advance)
Accuracy down to 0.2 g (GN-S) / 0.1 g (GN-F)
Load Cell D-HOP-LC digital load cell
Max Speed up to 320 ppm (GN-S) / up to 480 ppm (GN-F)
Weighing Range 1.5 kg or 6.0 kg models
Minimum Graduation 0.05 g (GN-S015 series)

Manufacturer: Ishida

The Ishida DACS-GN is a checkweigher series for end-of-line weight verification. It comes in two lines: the GN-S Excellence-Line, which handles up to 1.5 kg or 6.0 kg at speeds up to 320 ppm with accuracy down to 0.2 g, and the GN-F Advance-Line, which runs up to 480 ppm at 1.5 kg with accuracy down to 0.1 g.

The series uses Ishida's D-HOP-LC digital load cell, whose rigid design settles quickly so the machine can weigh at higher belt speeds without losing accuracy; minimum graduation reaches 0.05 g on the GN-S015 models. Multi-range weighing lets one checkweigher cover several product sizes, which matters on lines that switch between pack weights during a shift.

Source: Ishida DACS-GN brochure and product data.
